192 张照片

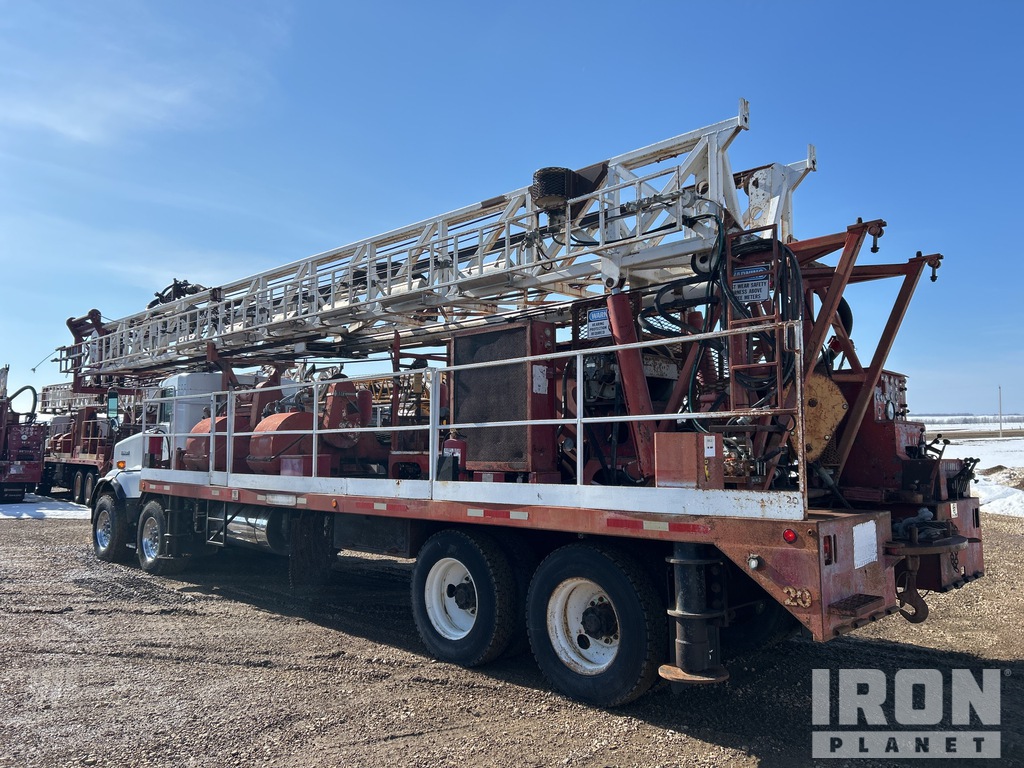

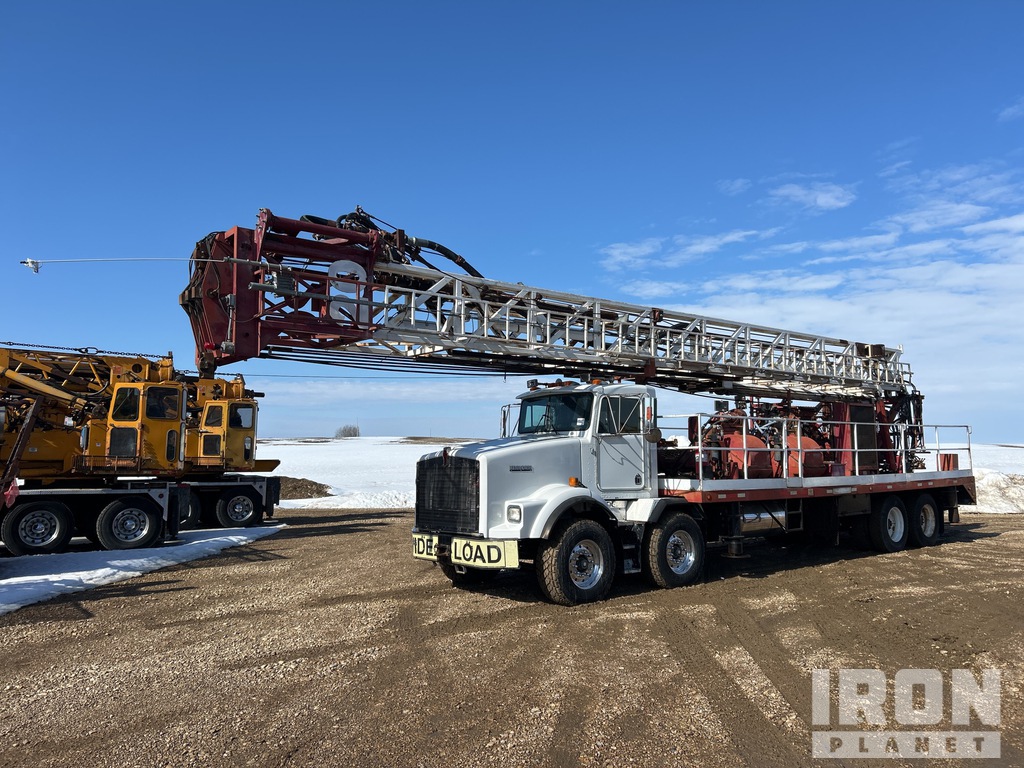

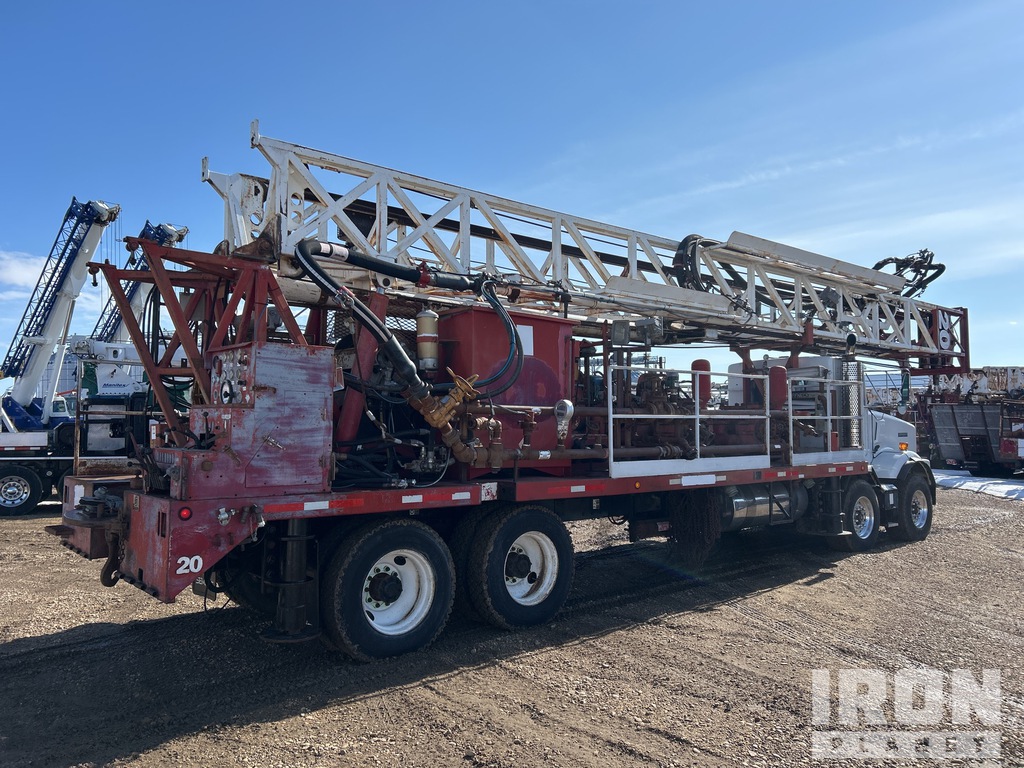

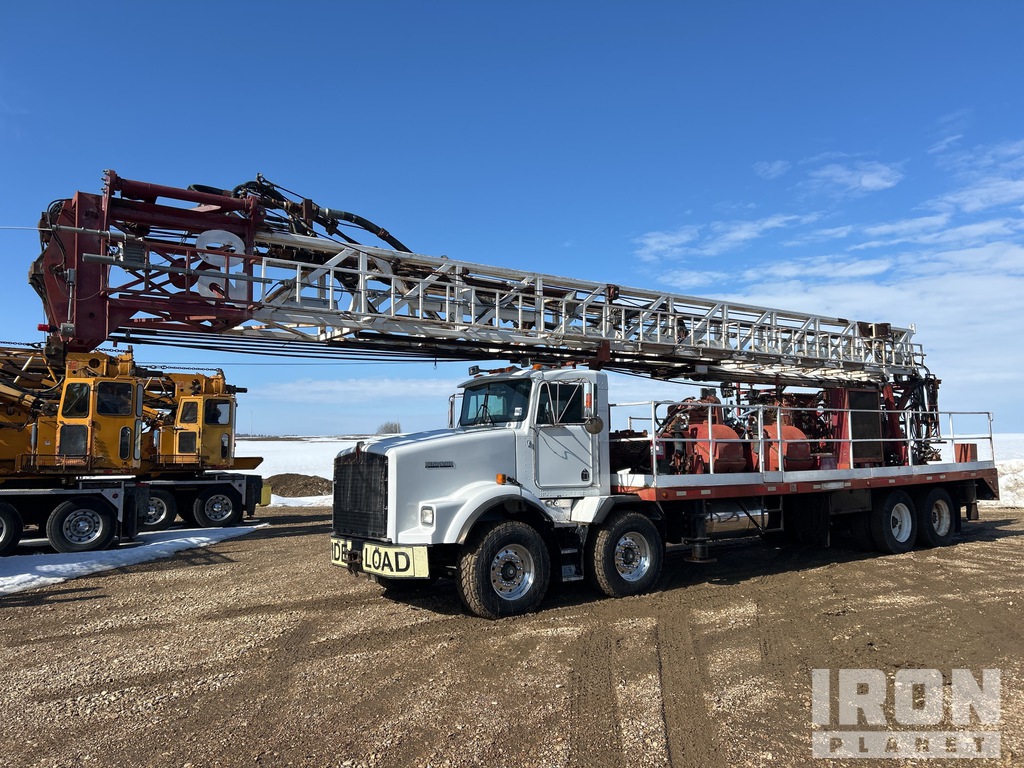

2001 Cora Lynn Drilling CLD59-90 on 2002 Kenworth CLD59-90 8x4 Twin-Steer 钻探车
位置
Pickardville, AB, CAN
Pickardville, AB, CAN
使用情况
39,266 km
39,266 km
序列号
1NKDLBTX72S965053
1NKDLBTX72S965053
Loading...
详细的设备信息
这批货由 IronClad Assurance 承保
知道这批货经过合资格的检查员全面细致的检查，买得放心。
身份证号码
#14954907
在露天场地
否
功能
PTO Driven, Mud Drill, Winch, Straight Down Outriggers, Rear Outriggers, Cat C-15 6 Cylinder Diesel Engine, Positive Air Shutoff, 19765 Engine hrs, Air Conditioner, Cruise Control, Engine Brake, Eaton Fuller RTLO-16918B 18-Speed Manual Transmission, Double Differential Locks, 37500 lb Front Axle, 46000 lb Rears, Spicer DS463P Drive Axles, 4.56:1 Axle Ratio, 83500 lb GVWR, Aluminum Front Wheels, 385/65R22.5 Front Tires, 11R24.5 Rear Tires, Dual Steering Boxes, Double Frame, Chalmers Rubber over Walking Beam Suspension, 310 in Wheelbase, PTO, Hydraulic Cylinder Drawworks, Cora Lynn Driller's Control Console, Range 3 DRILL DEPT - 600 METERS 30,000lb single line pull 60,000lb double line pull 6,000 lb torque on top drive. MAST: RANGE ILL - 85000 LB-37800DAN, (2) 5 1/2 X 8 GARDNER DENVER DUPLEX HYDRAULICALLY DRIVEN MUD PUMPS, MAIN WINCH 3,000 LB, WIRELINE WINCH, WINCH AND JIB BOOM, EQUIPPED WITH CORING ASSEMBLY AND WIRE LINE RETRIEVAL SYSTEM,
General Appearance
Featured Photo
Serial Number / VIN
1NKDLBTX72S965053
Hour Meter / Odometer
39266 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Drivers side front windshield is cracked
Exterior Lights
Operational
Configuration
Engine
Emissions Information
No US EPA Label Present
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
19765 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 30 PSI Gauge inoperable
Warning Lights
Operational
Gauges
Operational, Could not test all gauges
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational
PTO Pump
Operational
Frame Condition
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Control Station - Upper
Controls Hydraulic or Air
Oil Pressure
The gauge registers in the operating range. 30 PSI Gauge inoperable
Gauges
Could not test all gauges
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Drill Drive Head
Not operationally checked
Clamps/Vices
附加信息
