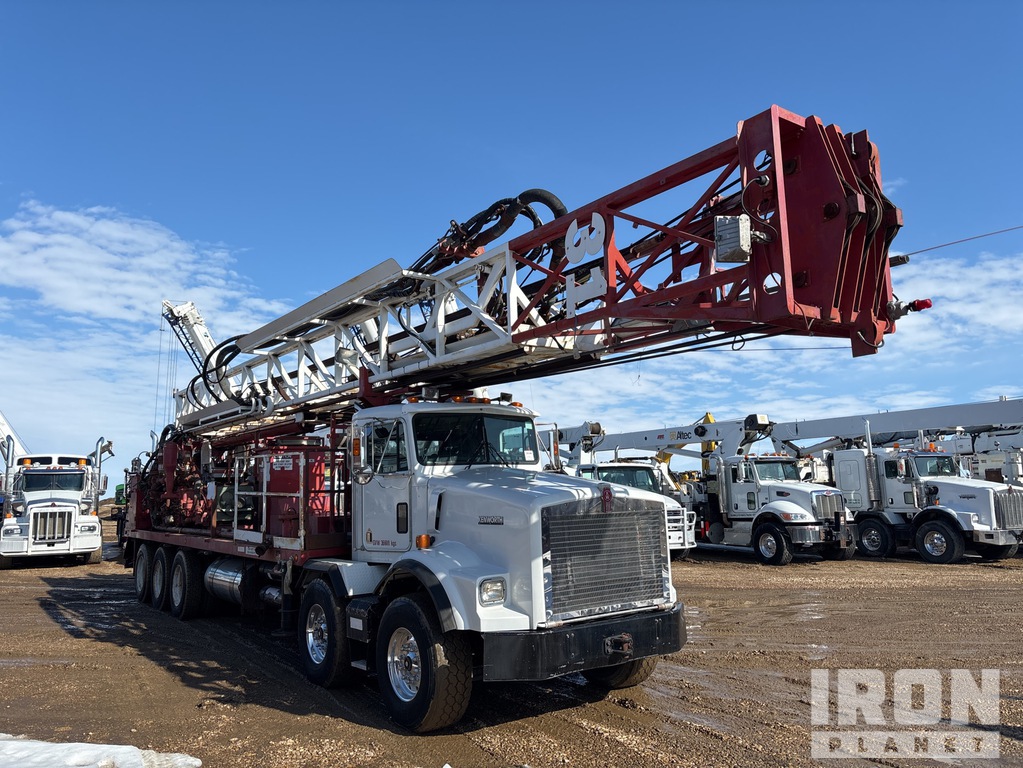

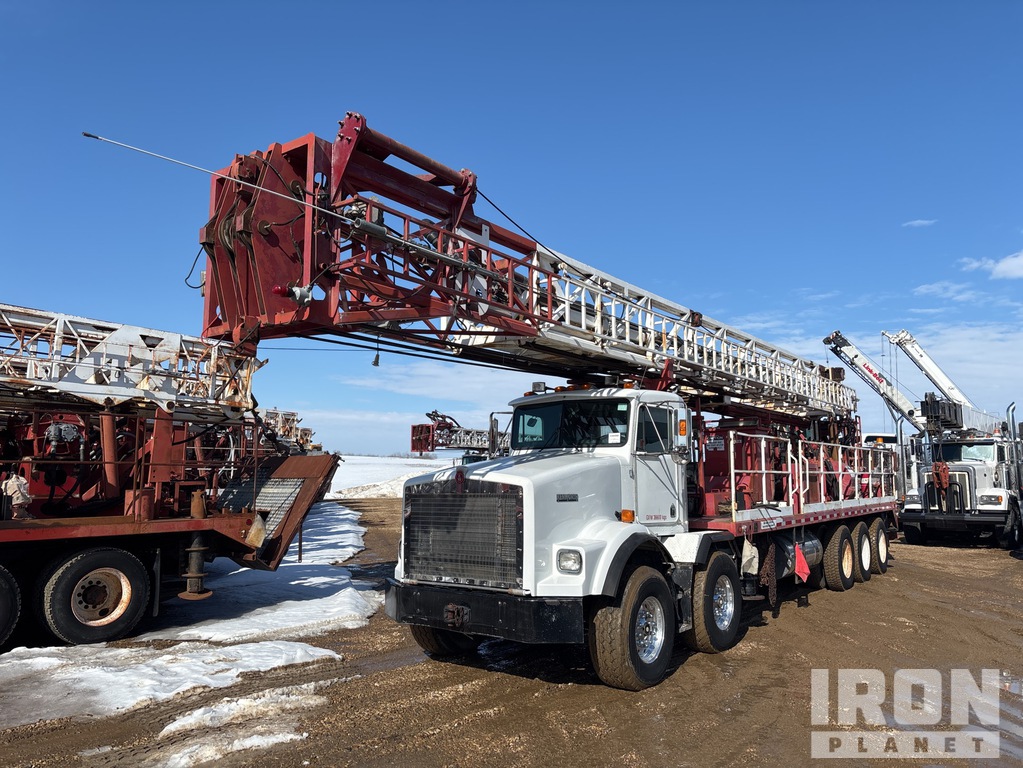

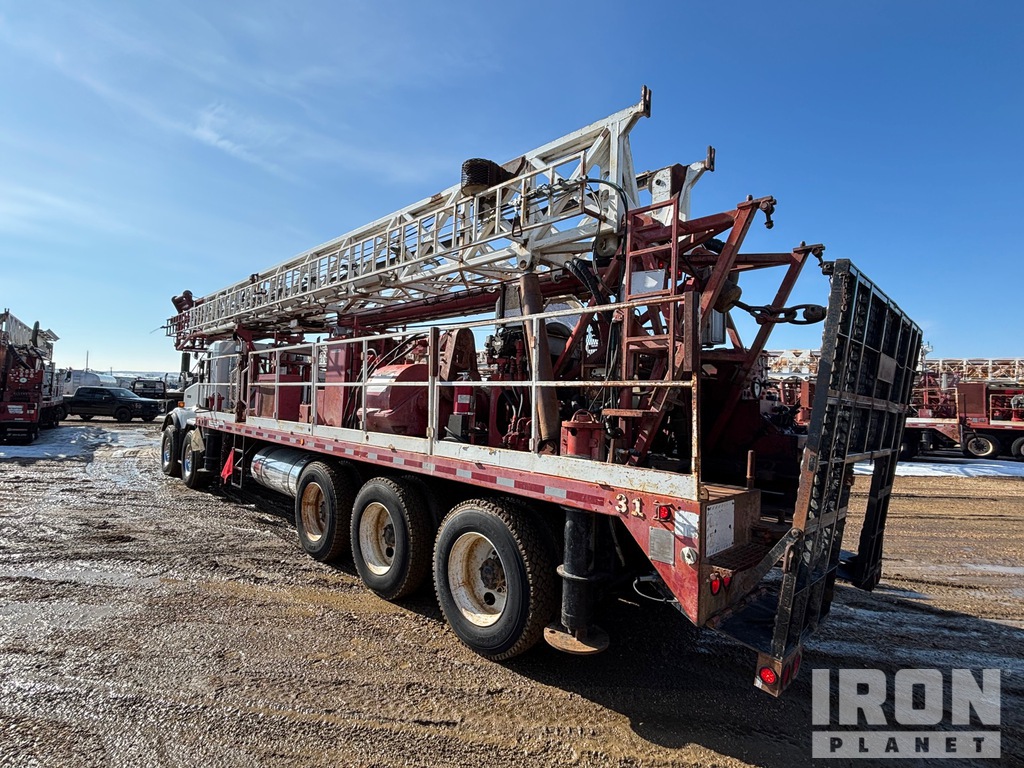

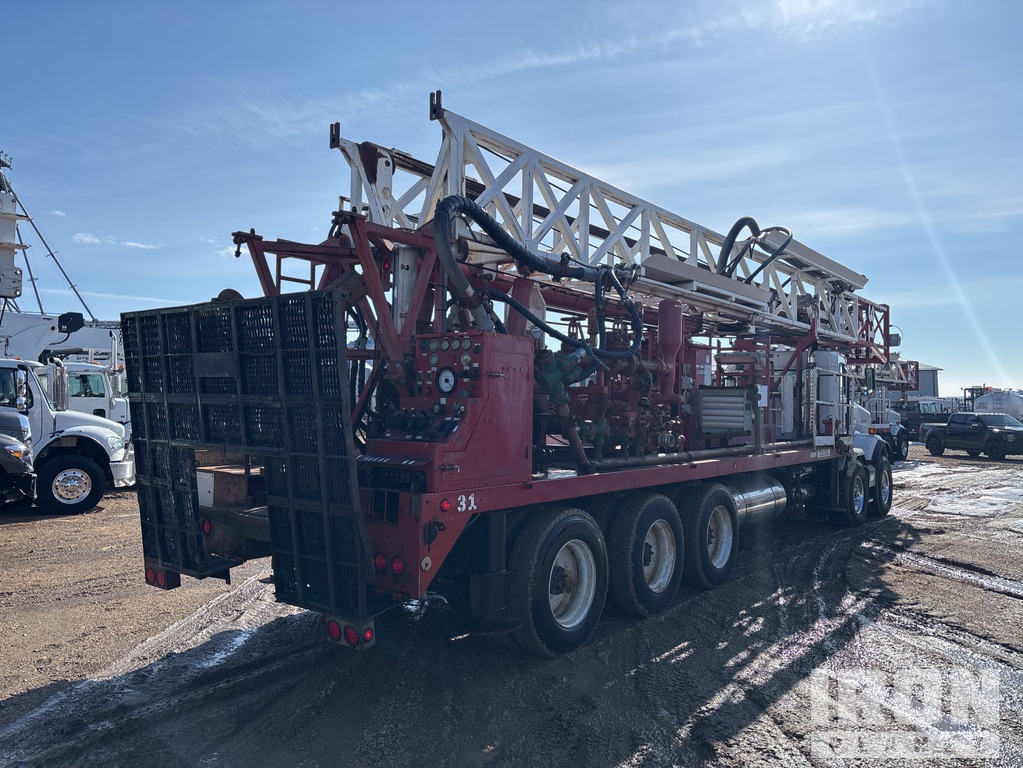

2003 Cora Lynn Drilling on 2004 Kenworth T800B Wide Hood 10x6 Twin-Steer 钻探车
位置
Pickardville, AB, CAN
Pickardville, AB, CAN
使用情况
31,474 km
31,474 km
序列号
1NKDXBTX84R973533
1NKDXBTX84R973533
Loading...
详细的设备信息
这批货由 IronClad Assurance 承保
知道这批货经过合资格的检查员全面细致的检查，买得放心。
身份证号码
#14954906
在露天场地
否
功能
PTO Driven, Mud Drill, Winch, Straight Down Outriggers, Rear Outriggers, Cat C15 6 Cylinder 14.6 L Diesel 525 hp Engine, 2003 US EPA Label, CARB Compliant, Positive Air Shutoff, 17134 Engine hrs, Cruise Control, Engine Brake, Eaton Fuller RTLO-16918B 18-Speed Manual Transmission, Double Differential Locks, 37500 lb Front Axle, 57999 lb Rears, Dana TDS583P Drive Axles, 4.56:1 Axle Ratio, 95500 lb GVWR, Aluminum Wheels, 425/65R22.5 Front Tires, 11R24.5 Rear Tires, Dual Steering Boxes, Double Frame, Neway AD Series Air Ride Suspension, 310 in Wheelbase, PTO, Wet Kit, Hydraulic Ram Drawworks, Cora Lynn Drilling Driller's Control Console, Range 3 30,000lb single line pull 60,000lb double line pull 6,000 lb torque on top drive. PTO DRIVEN, MUD DRILL, WINCH, STRAIGHT DOWN OUTRIGGERS, REAR OUTRIGGERS, CAT C15 MBN 18-SPEED MANUAL TRANSMISSION, FULL 6WAY LOCKERS 37500 LB FRONT AXLE, 69,000LB REAR AXLES 58000 LB SUSPENSION SPICER TDS583P DRIVE AXLES, 4.56:1 AXLE RATIO, 425/65R22.5 FRONT TIRES, 11R24.5 REAR DUAL STEERING BOXES, DOUBLE FRAME, NEWAY AD SERIES AIR RIDE SUSPENSION, 310 IN WHEELBASE, 46.5 FT DERRICK, HYD RAM RIG, 85,000 LBS CAPACITY, 5,000 FT-LBS TORQUE, GARDNER-DENVER FX DUPLEX PUMP Chassis Engine: Cat C15 6NZ 18 speed
General Appearance
Serial Number / VIN
1NKDXBTX84R973533
Hour Meter / Odometer
31474 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Front Driver Side Marker lights are not operational
Engine
Emissions Information
2003 US EPA Label, CARB Compliant
Emission Label
A/C Compressor
Belt missing
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
17134 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. ~47 PSI Gauge inoperable
Warning Lights
Operational, Check engine light and stop engine light come on when PTO is engaged
Gauges
Operational, Not operationally checked
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged, Operational
ECM Miles
Reader will not display ECM mileage
Air Conditioner
Not operationally checked, Belt missing
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Air operated
PTO Pump
Operational
Frame Condition
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Not operationally checked
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Control Station - Upper
Controls Hydraulic or Air
Load Charts
Posted on cab wall, Rear driver side frame
Oil Pressure
Gauge inoperable
Gauges
Not operationally checked
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Not operationally checked
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Drill Drive Head
Not operationally checked
Clamps/Vices
Limited Function Check
The main chassis components could not be operated.
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Apr 17, 2026 |
| Silicon | 0.61 PPM |
| Tin | 0 PPM |
| Silver | 0.01 PPM |
| Aluminum | 1.48 PPM |
| Chromium | 0.05 PPM |
| Lead | 1.41 PPM |
| Copper | 1.36 PPM |
| Nickel | 0.27 PPM |
| Iron | 4.94 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
